VeloClass bicycle traffic counter




Ultrasound based measurement system that has more precision and reliability than current traffic counting systems.

Project location and duration

Budapest, Hungary 2018 / 6 months

Technology

3D printing, Plastic moulding, sheet metal, welding

client

veloclass




Challenge

Developing the VeloClass was challenging for Maform due to sensor technology requirements regarding height, placements and distance between units. Safety was also an issue and it needed to be weather and vandal proof while being easy to maintain and cheap to produce. It also had to have a unique appearance to separate it from the competition. The traffic counter system consists of four posts, two for sending and receiving the ultrasound beam and for reflecting. Maform chose to make it a modular system where some of the components were identical and only a few parts were changed to determine each model.






Addig beauty to bikes everywhere

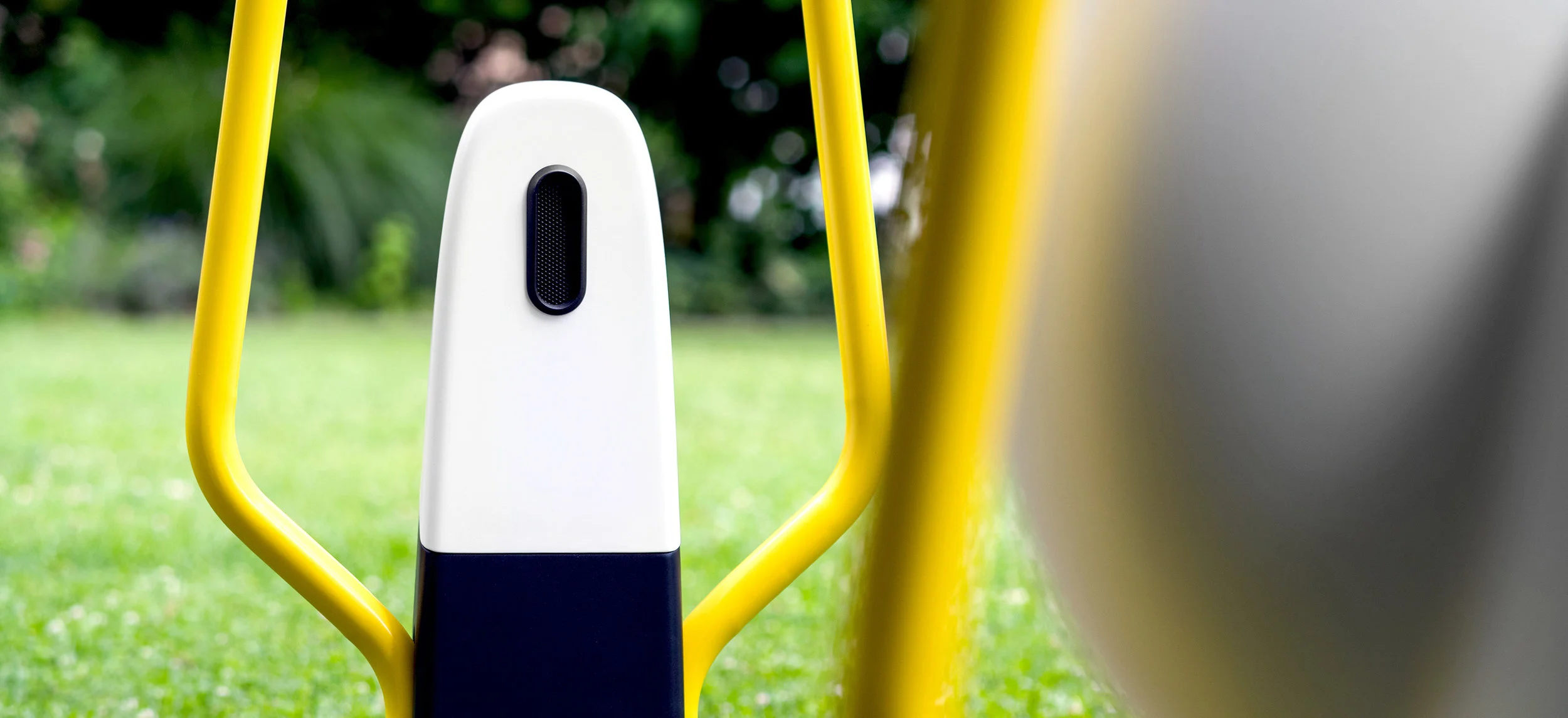

The VeloClass bicycle traffic counter has a bright coloured outer frame that gives it an iconic appearance and serves as a crash guard. It’s appearance was inspired by a bike pedal. A measurement system will be installed on bike roads to enable understanding for demand and usability. VeloClass also has bright displays where bikers and pedestrians can see real-time measurements and data.

VeloClass_Pék_Dáneil_3 2 copy.jpg




Technology

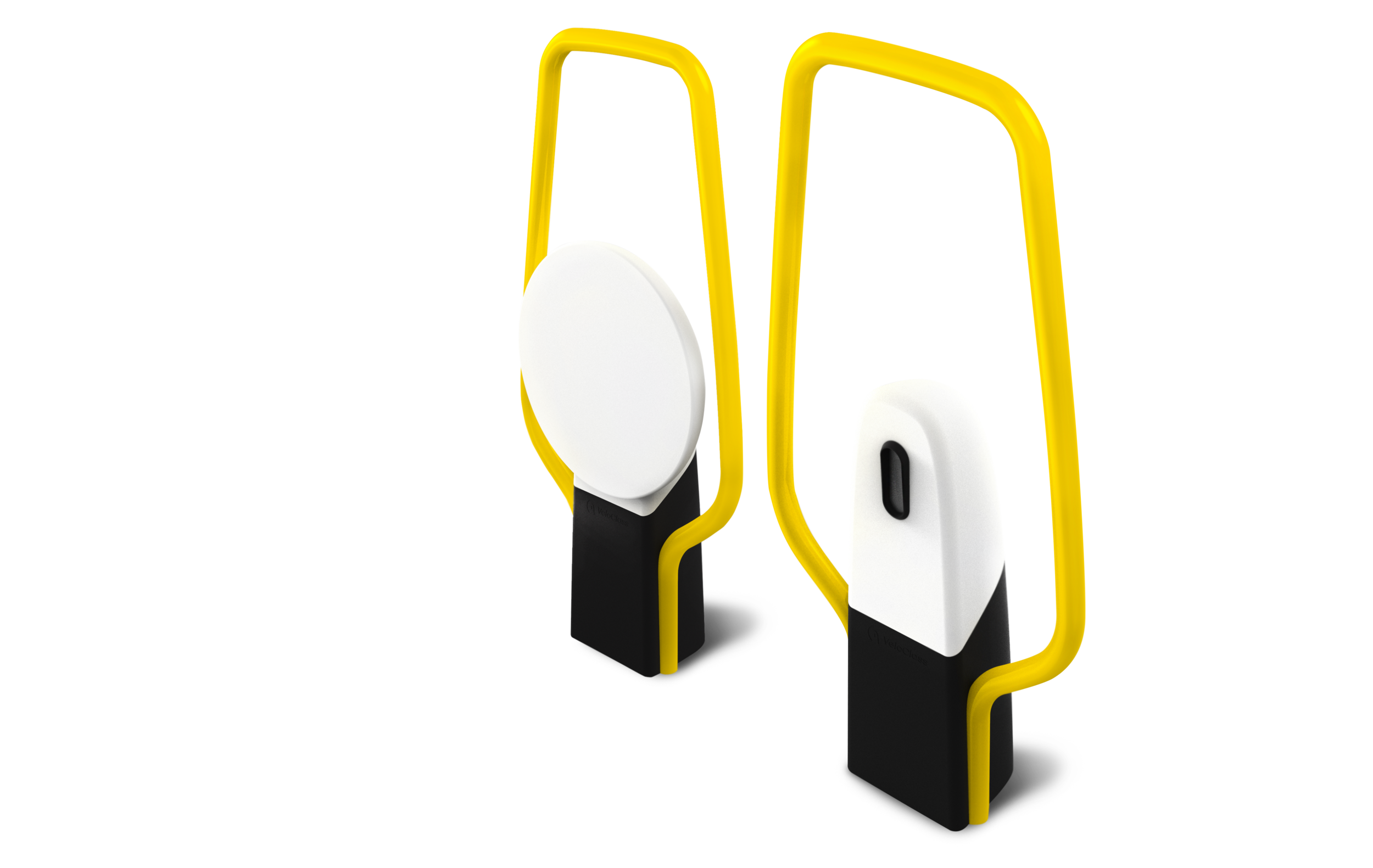

The traffic counter system consists of four posts. Two for sending and receiving the ultrasound beam, and two for reflecting the ultrasound signals. Maform chose to make it a modular system where some of the components were identical and only a few parts were changed to serve different functions.



veloclass_Ui_mokcup1 copy.jpg


VeloClass_behance_11 2.jpg
VeloClass_behance_12 2.jpg
